z8::Win32WindowHost类 参考

#include <Win32WindowHost.h>

类 z8::Win32WindowHost 继承关系图:

z8::Win32WindowHost 的协作图:

Protected 成员函数
	Win32WindowHost ()=default
virtual	~Win32WindowHost ()
void	AttachWindow (HWND window, EventTarget &inputTarget, HWND coordinateWindow=nullptr)
void	DetachWindow ()
bool	DispatchInputMessage (HWND window, UINT message, WPARAM wParam, LPARAM lParam, LRESULT &result)
virtual LRESULT	HandleWindowMessage (HWND window, UINT message, WPARAM wParam, LPARAM lParam)=0

Private 成员函数
float	ResolveCoordinateScale () const
MouseMovArgs	ResolveMouseArgs (HWND sourceWindow, UINT message, WPARAM wParam, LPARAM lParam)

静态 Private 成员函数
static MouseButton	ResolveMouseButton (UINT message, WPARAM wParam)
static LPCWSTR	ResolveSystemCursor (MouseCursor cursor)
static LRESULT CALLBACK	WindowProcedure (HWND window, UINT message, WPARAM wParam, LPARAM lParam)

Private 属性
EventTarget *	InputTarget = nullptr
HWND	AttachedWindow = nullptr
HWND	InputCoordinateWindow = nullptr
POINT	LastPointer {}
bool	HasPointerPosition = false
bool	ReleasingCapture = false

详细描述

Win32 HWND 与保留式事件目标之间的共享适配层。

该类只负责 WNDPROC 对象转发、坐标归一化和输入状态，不拥有 HWND，也不 参与交换链或窗口业务生命周期；主 Application 与 Floating host 因而可以 复用同一套平台消息语义，同时保留各自的 resize/render 策略。

构造及析构函数说明

Win32WindowHost()

z8::Win32WindowHost::Win32WindowHost ( )

protecteddefault

~Win32WindowHost()

Win32WindowHost::~Win32WindowHost ( )

protectedvirtual

函数调用图:

成员函数说明

AttachWindow()

void Win32WindowHost::AttachWindow ( HWND window, EventTarget & inputTarget, HWND coordinateWindow = nullptr )

protected

绑定现有 HWND；coordinateWindow 决定事件坐标系，Floating window 可将 本地客户坐标统一映射回主 Layout 客户区。

函数调用图:

这是这个函数的调用关系图:

DetachWindow()

void Win32WindowHost::DetachWindow ( )

protected

这是这个函数的调用关系图:

DispatchInputMessage()

bool Win32WindowHost::DispatchInputMessage ( HWND window, UINT message, WPARAM wParam, LPARAM lParam, LRESULT & result )

protected

处理共享输入消息；返回 true 表示 result 已包含窗口过程结果。

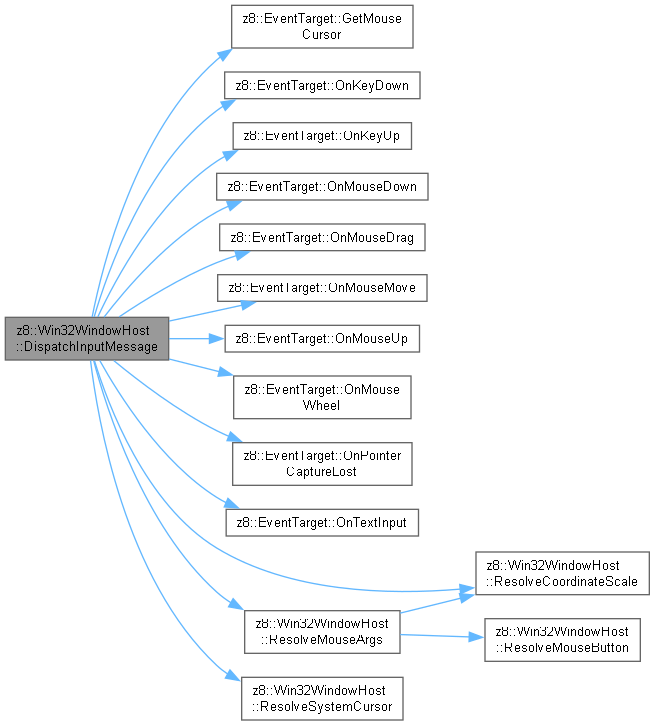

函数调用图:

这是这个函数的调用关系图:

HandleWindowMessage()

virtual LRESULT z8::Win32WindowHost::HandleWindowMessage ( HWND window, UINT message, WPARAM wParam, LPARAM lParam )

protectedpure virtual

在 z8::Application , 以及 z8::DX12FloatingWindowManager::Host 内被实现.

ResolveCoordinateScale()

float Win32WindowHost::ResolveCoordinateScale ( ) const

private

这是这个函数的调用关系图:

ResolveMouseArgs()

MouseMovArgs Win32WindowHost::ResolveMouseArgs ( HWND sourceWindow, UINT message, WPARAM wParam, LPARAM lParam )

private

函数调用图:

这是这个函数的调用关系图:

ResolveMouseButton()

MouseButton Win32WindowHost::ResolveMouseButton ( UINT message, WPARAM wParam )

staticprivate

这是这个函数的调用关系图:

ResolveSystemCursor()

LPCWSTR Win32WindowHost::ResolveSystemCursor ( MouseCursor cursor )

staticprivate

这是这个函数的调用关系图:

WindowProcedure()

LRESULT CALLBACK Win32WindowHost::WindowProcedure ( HWND window, UINT message, WPARAM wParam, LPARAM lParam )

staticprivate

这是这个函数的调用关系图:

类成员变量说明

AttachedWindow

HWND z8::Win32WindowHost::AttachedWindow = nullptr

private

HasPointerPosition

bool z8::Win32WindowHost::HasPointerPosition = false

private

InputCoordinateWindow

HWND z8::Win32WindowHost::InputCoordinateWindow = nullptr

private

InputTarget

EventTarget* z8::Win32WindowHost::InputTarget = nullptr

private

LastPointer

POINT z8::Win32WindowHost::LastPointer {}

private

ReleasingCapture

bool z8::Win32WindowHost::ReleasingCapture = false

private

---

该类的文档由以下文件生成:

• include/Core/Win32WindowHost.h
• src/Core/Win32WindowHost.cpp
