z8::DX12FloatingWindowManager::Host类 参考

类 z8::DX12FloatingWindowManager::Host 继承关系图:

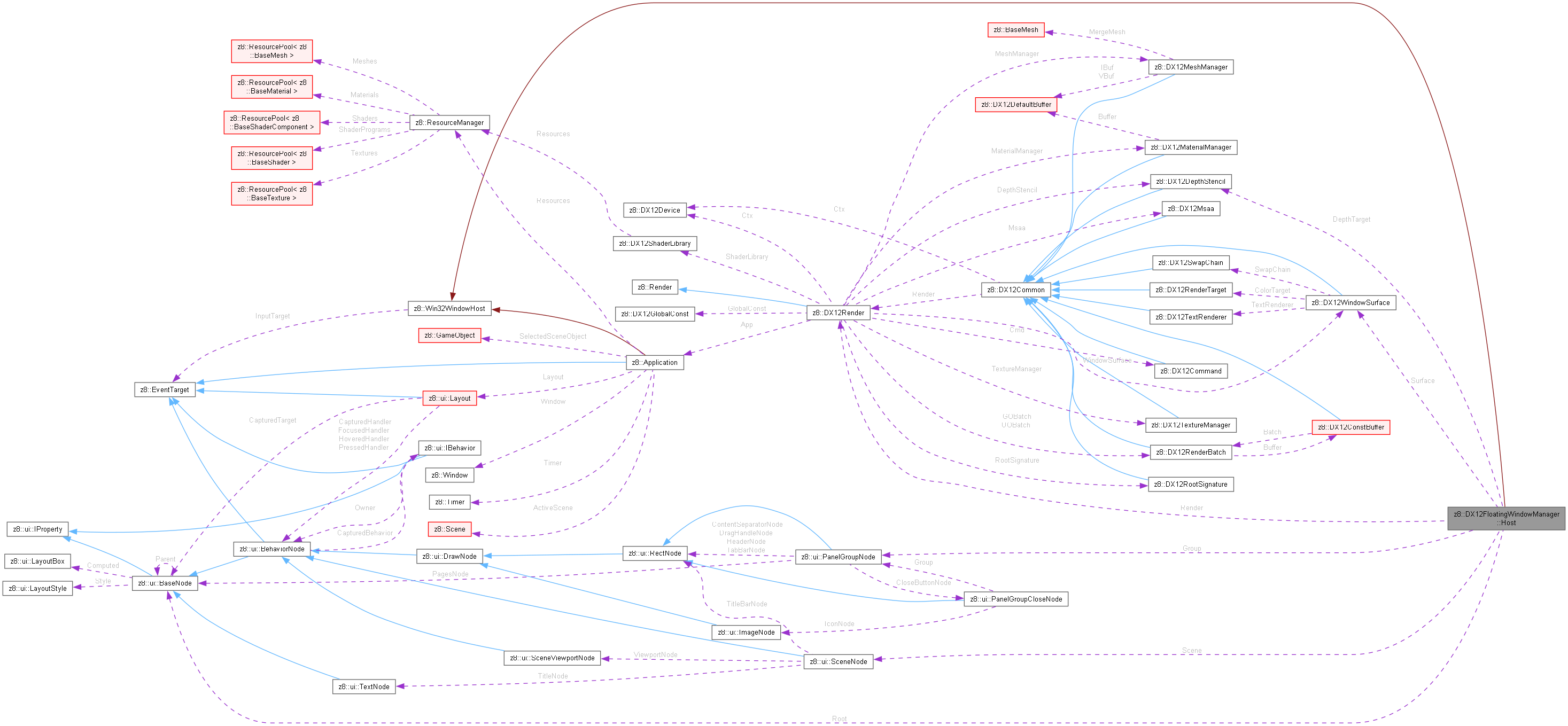

z8::DX12FloatingWindowManager::Host 的协作图:

Public 成员函数
	Host (DX12Render &render, ui::BaseNode &root)
	~Host ()
ui::PanelGroupNode *	GetGroup () const
ui::BaseNode *	GetRoot () const
bool	IsClosePending () const
void	RebuildBatch ()
void	SynchronizeWindow ()
void	Update ()
void	Draw ()

Private 成员函数
bool	IsRootAlive () const
LRESULT	ResolveNonClientHit (LPARAM lParam) const
void	RenderInteractiveResizeFrame ()
LRESULT	HandleWindowMessage (HWND window, UINT message, WPARAM wParam, LPARAM lParam) override
void	Resize ()
void	SynchronizeRectFromWindow ()
Private 成员函数 继承自 z8::Win32WindowHost
	Win32WindowHost ()=default
virtual	~Win32WindowHost ()
void	AttachWindow (HWND window, EventTarget &inputTarget, HWND coordinateWindow=nullptr)
void	DetachWindow ()
bool	DispatchInputMessage (HWND window, UINT message, WPARAM wParam, LPARAM lParam, LRESULT &result)

Private 属性
DX12Render *	Render = nullptr
ui::BaseNode *	Root = nullptr
ui::PanelGroupNode *	Group = nullptr
ui::SceneNode *	Scene = nullptr
HWND	Wnd = nullptr
DX12WindowSurface	Surface
DX12DepthStencil	DepthTarget
std::unique_ptr< DX12RenderBatch >	Batch
int	Width = 1
int	Height = 1
unsigned	Dpi = USER_DEFAULT_SCREEN_DPI
float	DpiScale = 1.0f
bool	ResizePending = false
bool	SuppressWindowSync = false
bool	ClosePending = false
bool	InSizeMove = false

构造及析构函数说明

Host()

z8::DX12FloatingWindowManager::Host::Host ( DX12Render & render, ui::BaseNode & root )

inline

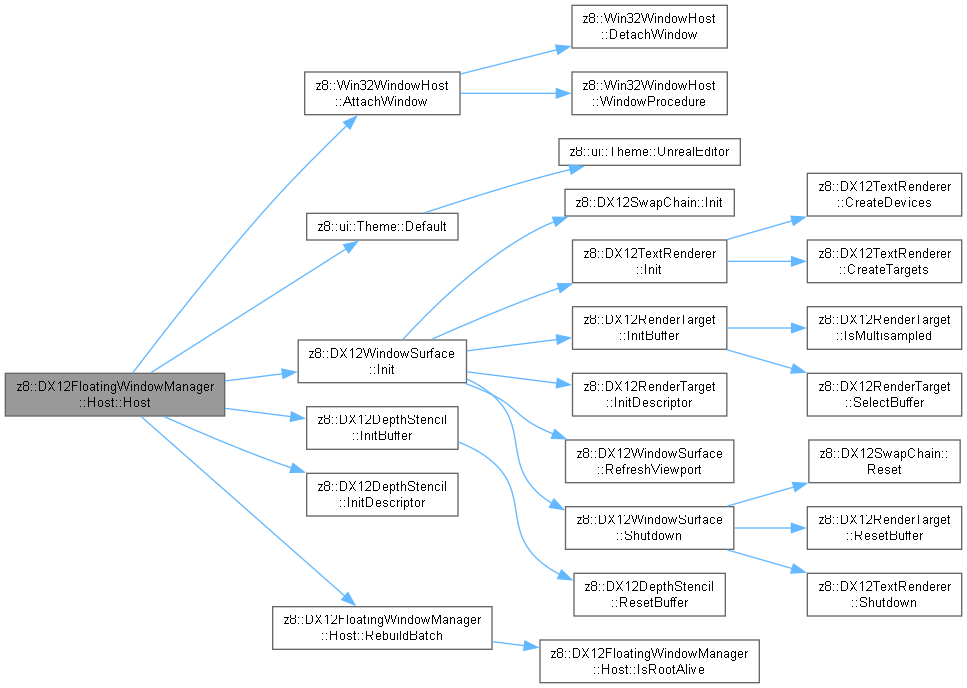

函数调用图:

~Host()

z8::DX12FloatingWindowManager::Host::~Host ( )

inline

函数调用图:

成员函数说明

Draw()

void z8::DX12FloatingWindowManager::Host::Draw ( )

inline

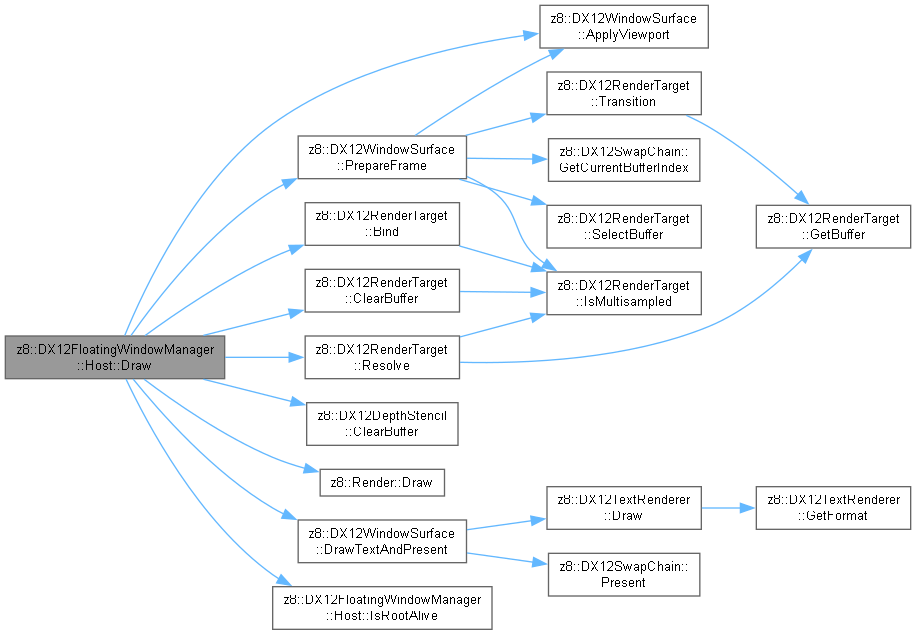

函数调用图:

这是这个函数的调用关系图:

GetGroup()

ui::PanelGroupNode * z8::DX12FloatingWindowManager::Host::GetGroup ( ) const

inline

GetRoot()

ui::BaseNode * z8::DX12FloatingWindowManager::Host::GetRoot ( ) const

inline

HandleWindowMessage()

LRESULT z8::DX12FloatingWindowManager::Host::HandleWindowMessage ( HWND window, UINT message, WPARAM wParam, LPARAM lParam )

inlineoverrideprivatevirtual

实现了 z8::Win32WindowHost.

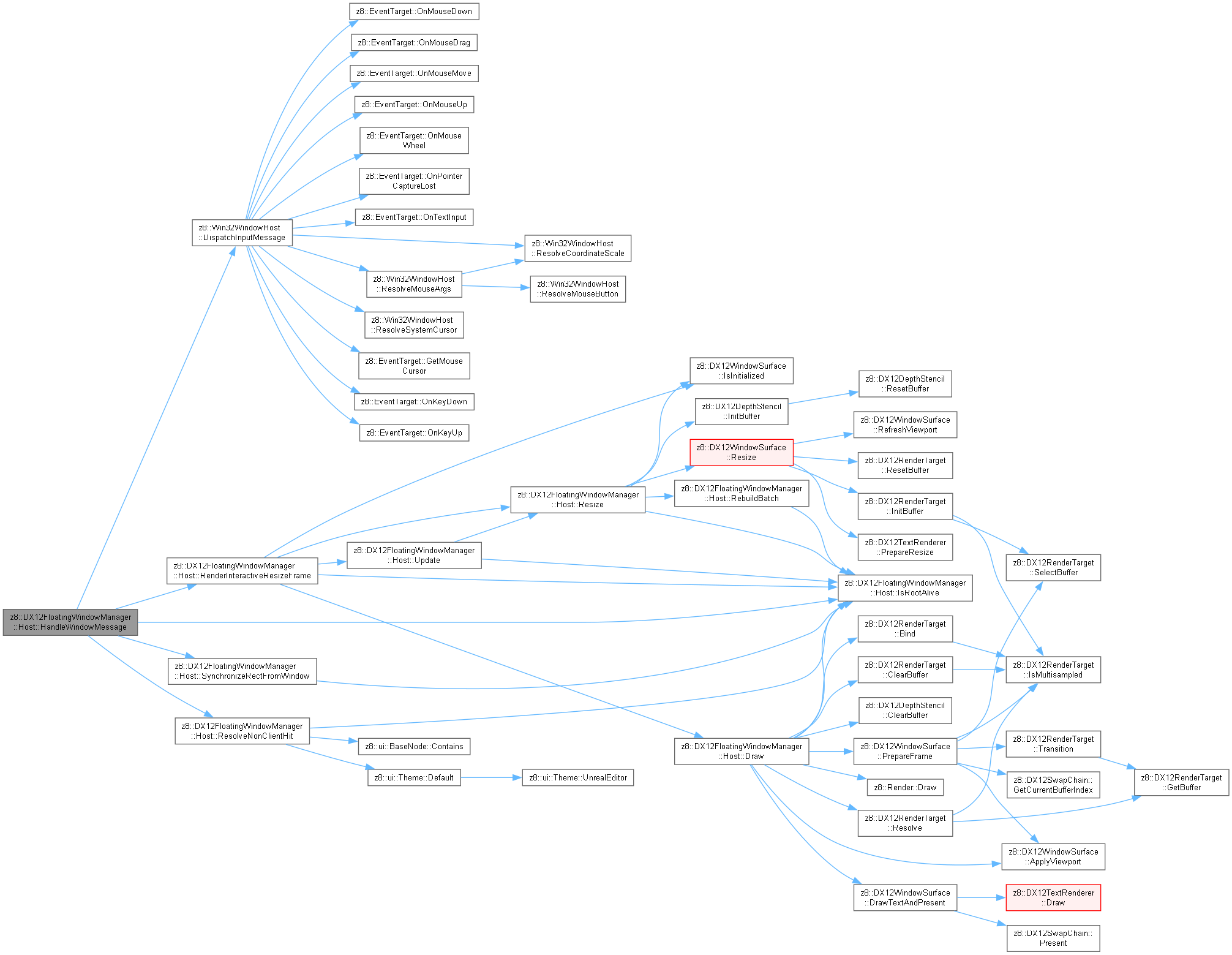

函数调用图:

IsClosePending()

bool z8::DX12FloatingWindowManager::Host::IsClosePending ( ) const

inline

IsRootAlive()

bool z8::DX12FloatingWindowManager::Host::IsRootAlive ( ) const

inlineprivate

判断非拥有 Root 是否仍由 Layout 持有。

Panel 提交到其他 Group 时会在当前 WNDPROC 内销毁旧 Group，而 Host 必须 延迟到下一帧 Reconcile 才能安全销毁 HWND。Nodes 已在提交末尾重建， 所以纯地址查询可以封住这段窗口消息重入期，且不会解引用悬空指针。

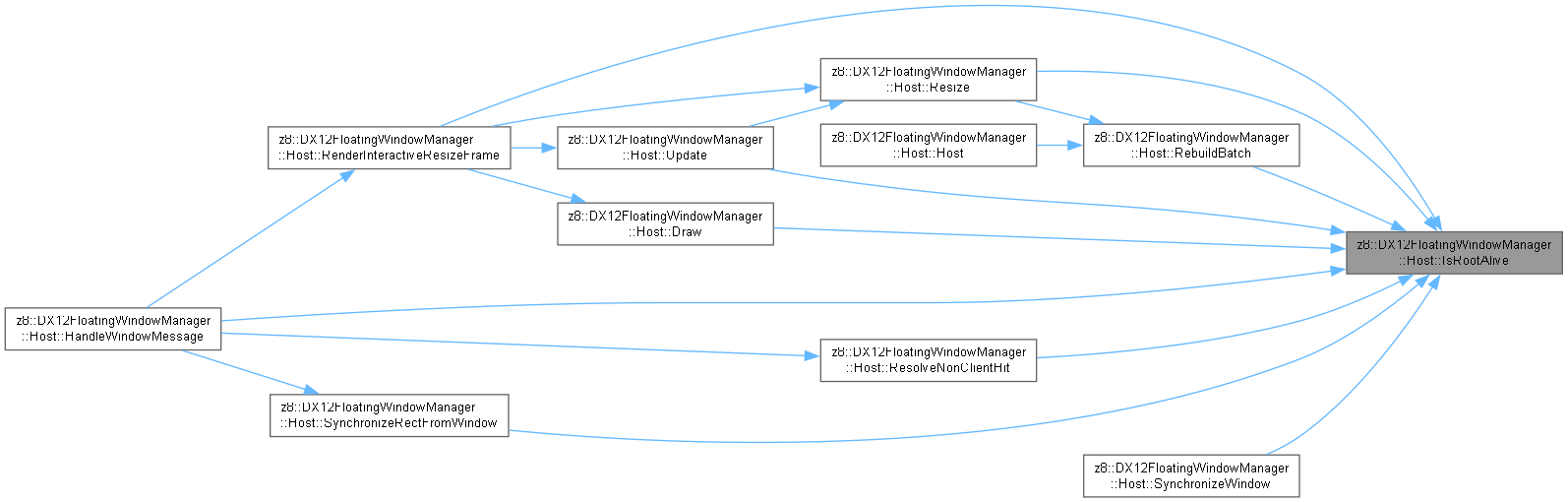

这是这个函数的调用关系图:

RebuildBatch()

void z8::DX12FloatingWindowManager::Host::RebuildBatch ( )

inline

函数调用图:

这是这个函数的调用关系图:

RenderInteractiveResizeFrame()

void z8::DX12FloatingWindowManager::Host::RenderInteractiveResizeFrame ( )

inlineprivate

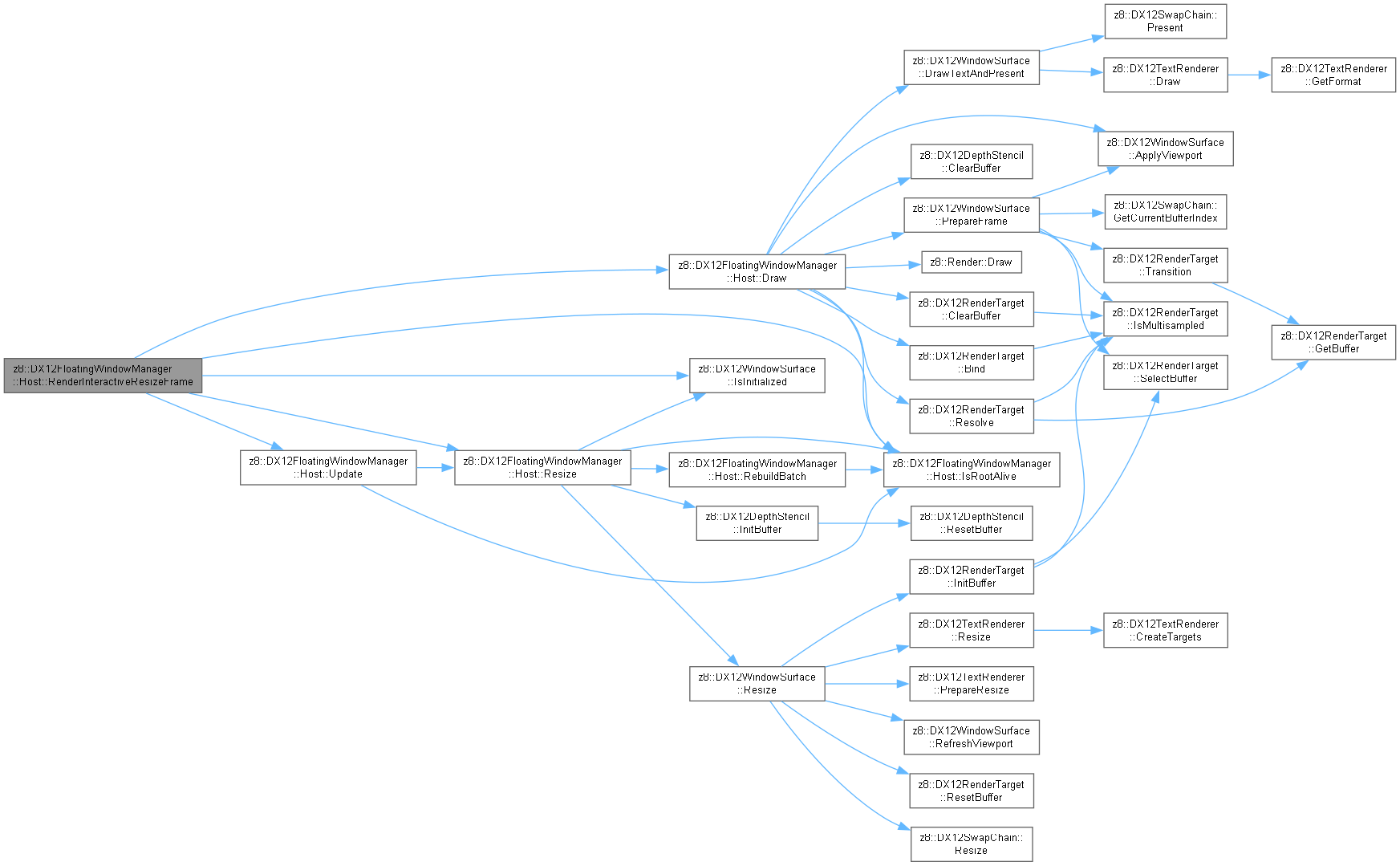

函数调用图:

这是这个函数的调用关系图:

Resize()

void z8::DX12FloatingWindowManager::Host::Resize ( )

inlineprivate

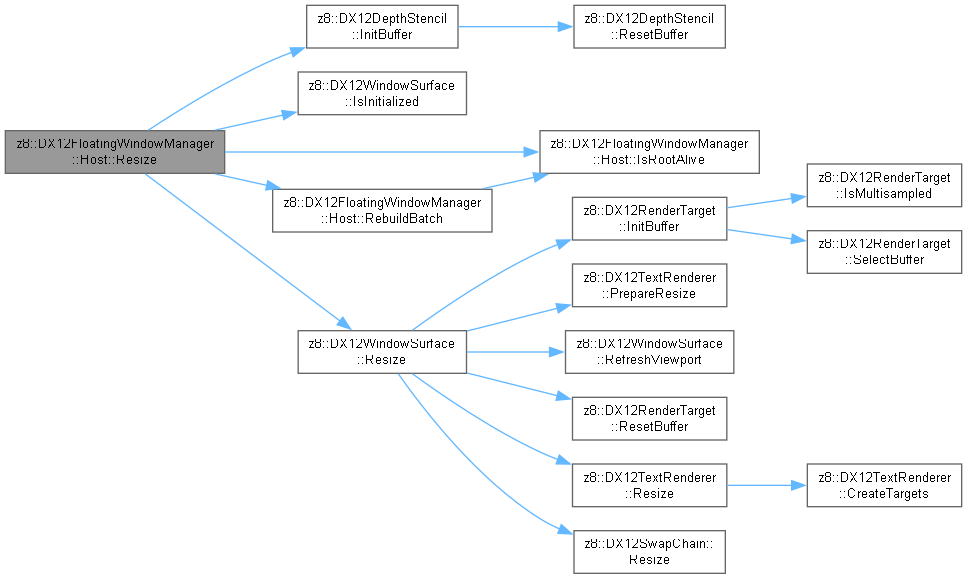

函数调用图:

这是这个函数的调用关系图:

ResolveNonClientHit()

LRESULT z8::DX12FloatingWindowManager::Host::ResolveNonClientHit ( LPARAM lParam ) const

inlineprivate

将 Floating HWND 的可见边缘统一交给 Win32 非客户区状态机。

point 使用屏幕坐标；ScreenToClient 后允许出现负数和超出客户区的值， 因而同一判断同时覆盖系统 frame 外侧与 UI 客户区内侧，消除两套 resize 捕获在左/上边缘竞争导致的概率性失效。

函数调用图:

这是这个函数的调用关系图:

SynchronizeRectFromWindow()

void z8::DX12FloatingWindowManager::Host::SynchronizeRectFromWindow ( )

inlineprivate

函数调用图:

这是这个函数的调用关系图:

SynchronizeWindow()

void z8::DX12FloatingWindowManager::Host::SynchronizeWindow ( )

inline

函数调用图:

Update()

void z8::DX12FloatingWindowManager::Host::Update ( )

inline

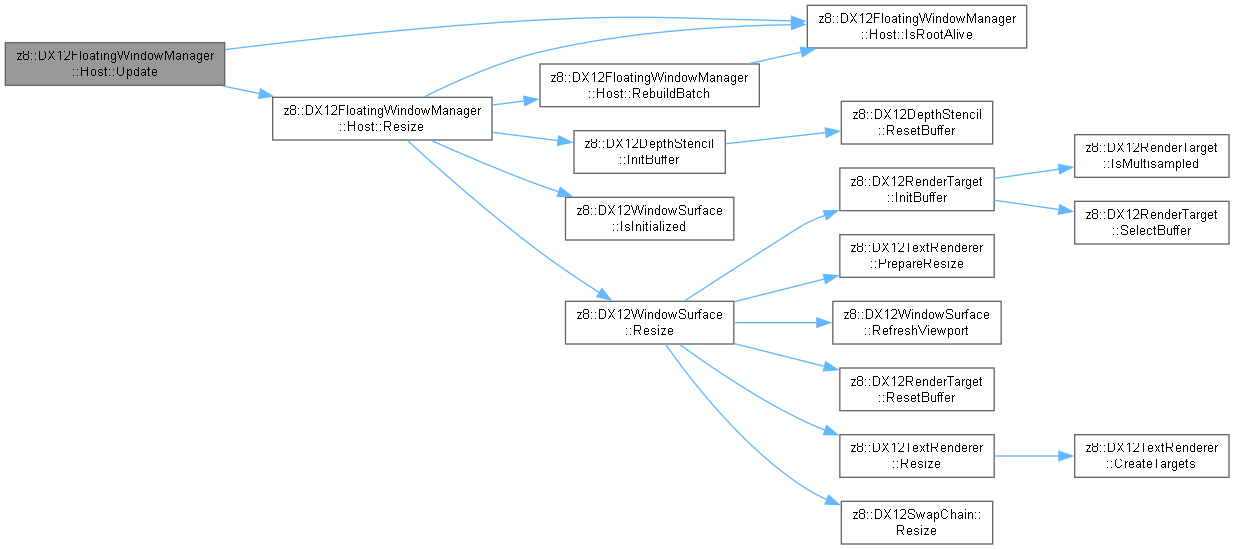

函数调用图:

这是这个函数的调用关系图:

类成员变量说明

Batch

std::unique_ptr<DX12RenderBatch> z8::DX12FloatingWindowManager::Host::Batch

private

ClosePending

bool z8::DX12FloatingWindowManager::Host::ClosePending = false

private

DepthTarget

DX12DepthStencil z8::DX12FloatingWindowManager::Host::DepthTarget

private

仅包含 SceneNode 的宿主创建深度目标，普通 Panel 不承担额外显存。

Dpi

unsigned z8::DX12FloatingWindowManager::Host::Dpi = USER_DEFAULT_SCREEN_DPI

private

DpiScale

float z8::DX12FloatingWindowManager::Host::DpiScale = 1.0f

private

Group

ui::PanelGroupNode* z8::DX12FloatingWindowManager::Host::Group = nullptr

private

缓存创建时的节点类型，避免延迟回收窗口对悬空 Root 再次执行 RTTI。

Height

int z8::DX12FloatingWindowManager::Host::Height = 1

private

InSizeMove

bool z8::DX12FloatingWindowManager::Host::InSizeMove = false

private

Render

DX12Render* z8::DX12FloatingWindowManager::Host::Render = nullptr

private

ResizePending

bool z8::DX12FloatingWindowManager::Host::ResizePending = false

private

Root

ui::BaseNode* z8::DX12FloatingWindowManager::Host::Root = nullptr

private

Scene

ui::SceneNode* z8::DX12FloatingWindowManager::Host::Scene = nullptr

private

SuppressWindowSync

bool z8::DX12FloatingWindowManager::Host::SuppressWindowSync = false

private

Surface

DX12WindowSurface z8::DX12FloatingWindowManager::Host::Surface

private

Floating HWND 独占呈现表面，但复用主渲染器的设备、队列与 PSO。

Width

int z8::DX12FloatingWindowManager::Host::Width = 1

private

Wnd

HWND z8::DX12FloatingWindowManager::Host::Wnd = nullptr

private

---

该类的文档由以下文件生成:

• src/Target/DirectX/DX12FloatingWindow.cpp
