z8::ui::BaseNode类 参考

#include <BaseNode.h>

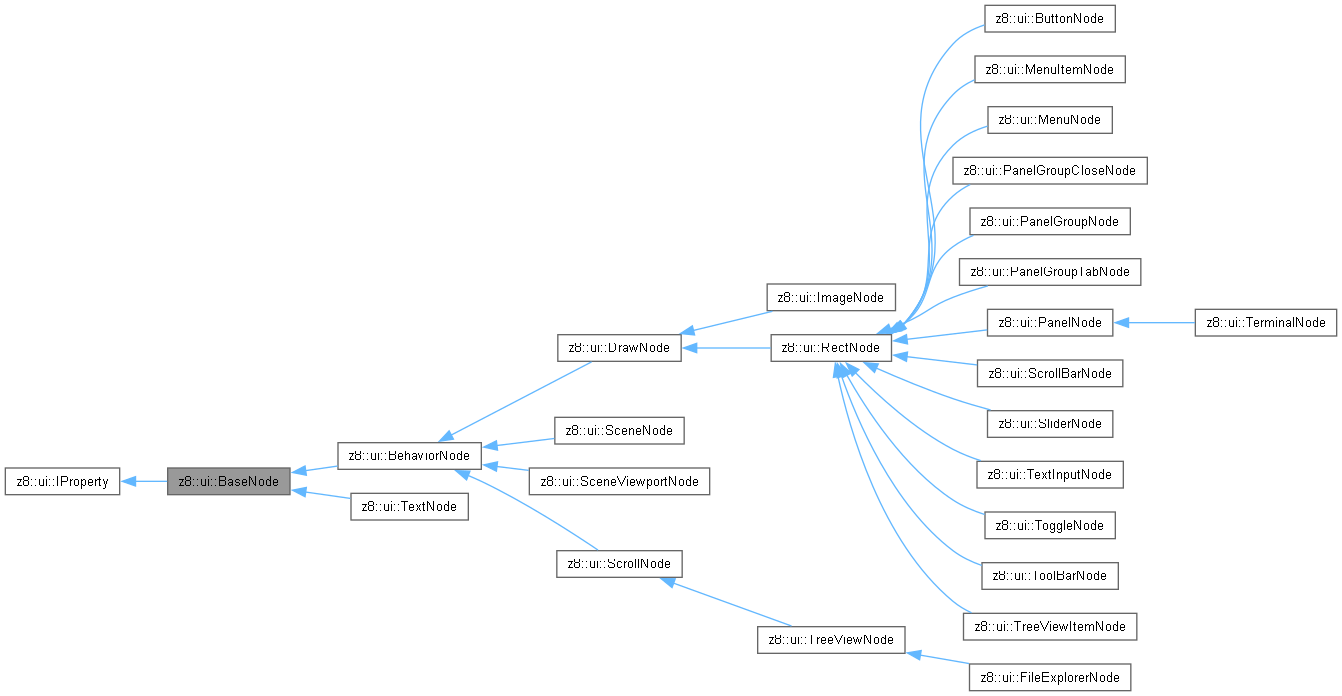

类 z8::ui::BaseNode 继承关系图:

z8::ui::BaseNode 的协作图:

Public 成员函数
	BaseNode ()
	~BaseNode () override
	BaseNode (const BaseNode &)=delete
BaseNode &	operator= (const BaseNode &)=delete
virtual const char *	TypeName () const
virtual bool	RoutesToScene () const
bool	SetProperty (const std::string &name, const std::string &value) override
virtual BaseNode *	ContentHost ()
bool	Contains (float x, float y) const
bool	Contains (MouseMovArgs args) const
virtual BaseNode *	AddChild (std::unique_ptr< BaseNode > child)
void	RemoveChildrenFrom (size_t first)
virtual void	OnAfterLayout ()
virtual void	Synchronize ()
virtual void	DispatchAfterLayout ()
Public 成员函数 继承自 z8::ui::IProperty
virtual	~IProperty ()=default

Public 属性
std::string	Key
LayoutStyle	Style
LayoutBox	Computed
BaseNode *	Parent = nullptr
std::vector< std::unique_ptr< BaseNode > >	Children
float	Left = 0.0f
float	Top = 0.0f
float	Width = 0.0f
float	Height = 0.0f
float	ChildOffsetX = 0.0f
float	ChildOffsetY = 0.0f
bool	ClipChildren = false
bool	Visible = true
bool	EffectiveVisible = true
bool	LayoutManaged = false
ClipRect	VisibleClip = {-100000.0f, -100000.0f, 100000.0f, 100000.0f}

构造及析构函数说明

BaseNode() [1/2]

BaseNode::BaseNode ( )

default

~BaseNode()

BaseNode::~BaseNode ( )

overridedefault

BaseNode() [2/2]

z8::ui::BaseNode::BaseNode ( const BaseNode & )

delete

成员函数说明

AddChild()

BaseNode * BaseNode::AddChild ( std::unique_ptr< BaseNode > child )

virtual

转移子节点所有权并维护 Parent。复合容器可覆写该入口， 将声明子节点转发到内部内容宿主。

被 z8::ui::PanelGroupNode , 以及 z8::ui::ToolBarNode 重载.

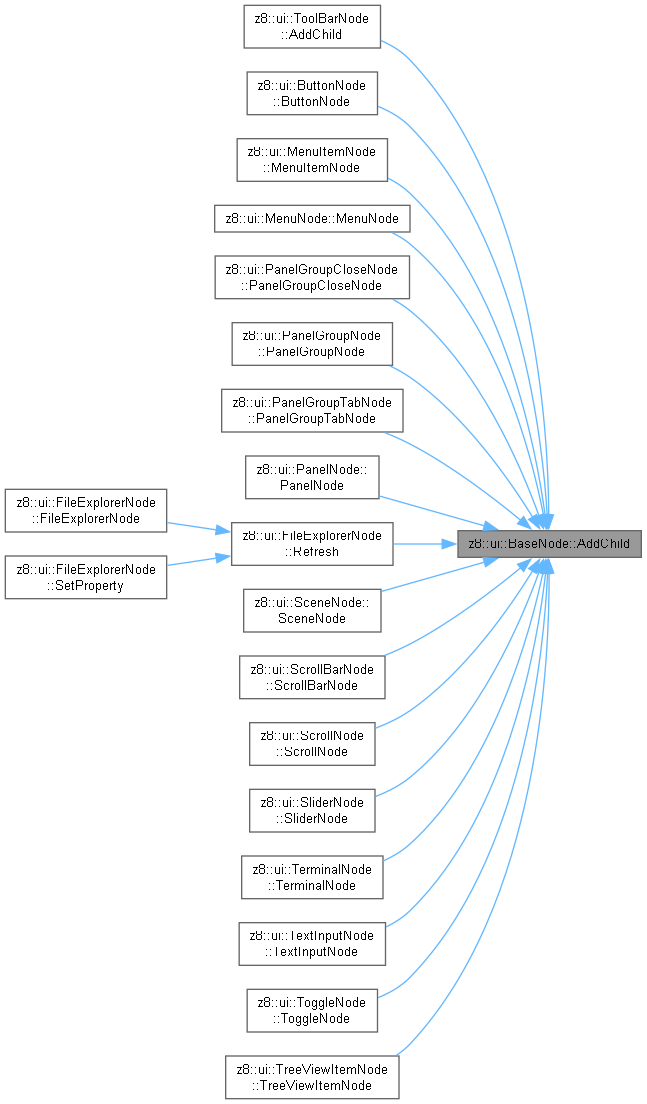

这是这个函数的调用关系图:

Contains() [1/2]

bool BaseNode::Contains	(	float	x,
		float	y ) const

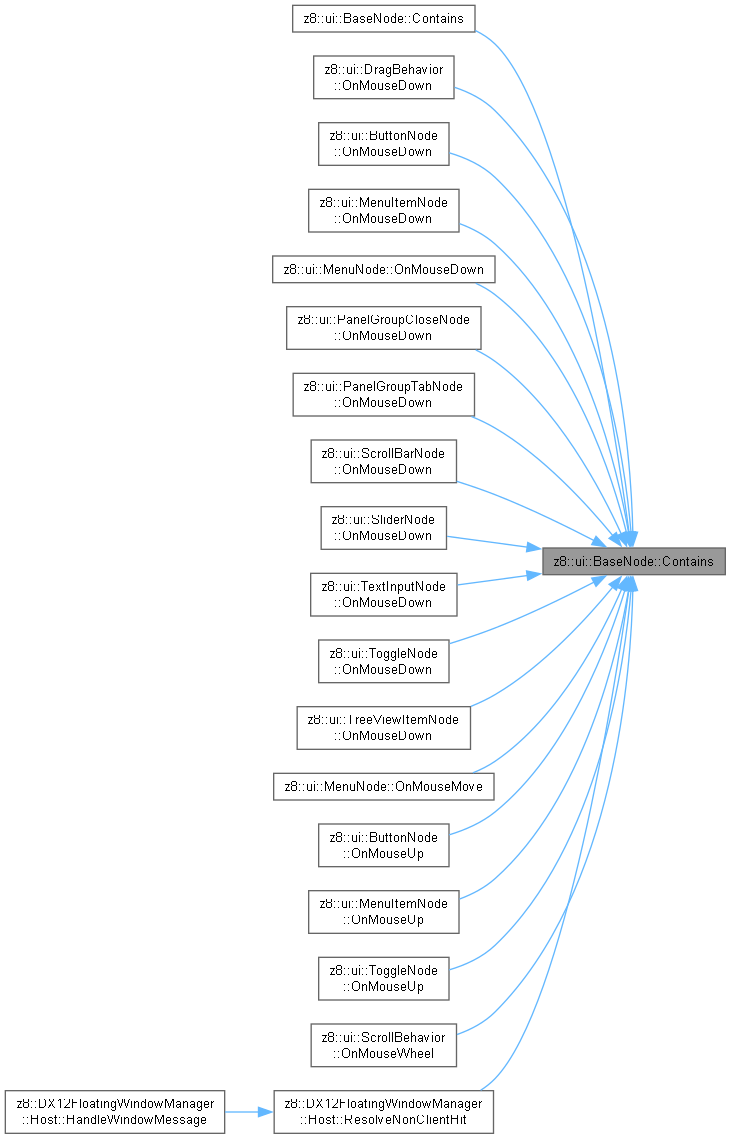

这是这个函数的调用关系图:

Contains() [2/2]

bool BaseNode::Contains

(

MouseMovArgs

args

)

const

函数调用图:

ContentHost()

BaseNode * BaseNode::ContentHost ( )

virtual

被 z8::ui::MenuNode, z8::ui::PanelGroupNode, z8::ui::PanelNode, z8::ui::ScrollNode , 以及 z8::ui::TreeViewItemNode 重载.

DispatchAfterLayout()

void BaseNode::DispatchAfterLayout ( )

virtual

被 z8::ui::BehaviorNode 重载.

函数调用图:

这是这个函数的调用关系图:

OnAfterLayout()

virtual void z8::ui::BaseNode::OnAfterLayout ( )

inlinevirtual

被 z8::ui::MenuNode, z8::ui::ScrollBarNode , 以及 z8::ui::TreeViewNode 重载.

这是这个函数的调用关系图:

operator=()

BaseNode & z8::ui::BaseNode::operator= ( const BaseNode & )

delete

RemoveChildrenFrom()

void BaseNode::RemoveChildrenFrom

(

size_t

first

)

RoutesToScene()

virtual bool z8::ui::BaseNode::RoutesToScene ( ) const

inlinevirtual

标记该节点是否只是场景输入窗口；默认 UI 节点会阻止事件继续传播。

被 z8::ui::SceneViewportNode 重载.

SetProperty()

bool BaseNode::SetProperty ( const std::string & name, const std::string & value )

overridevirtual

重载 z8::ui::IProperty .

被 z8::ui::BehaviorNode, z8::ui::ButtonNode, z8::ui::DrawNode, z8::ui::FileExplorerNode, z8::ui::ImageNode, z8::ui::MenuItemNode, z8::ui::MenuNode, z8::ui::PanelGroupNode, z8::ui::PanelNode, z8::ui::SceneNode, z8::ui::SliderNode, z8::ui::TextInputNode, z8::ui::TextNode, z8::ui::ToggleNode , 以及 z8::ui::TreeViewItemNode 重载.

函数调用图:

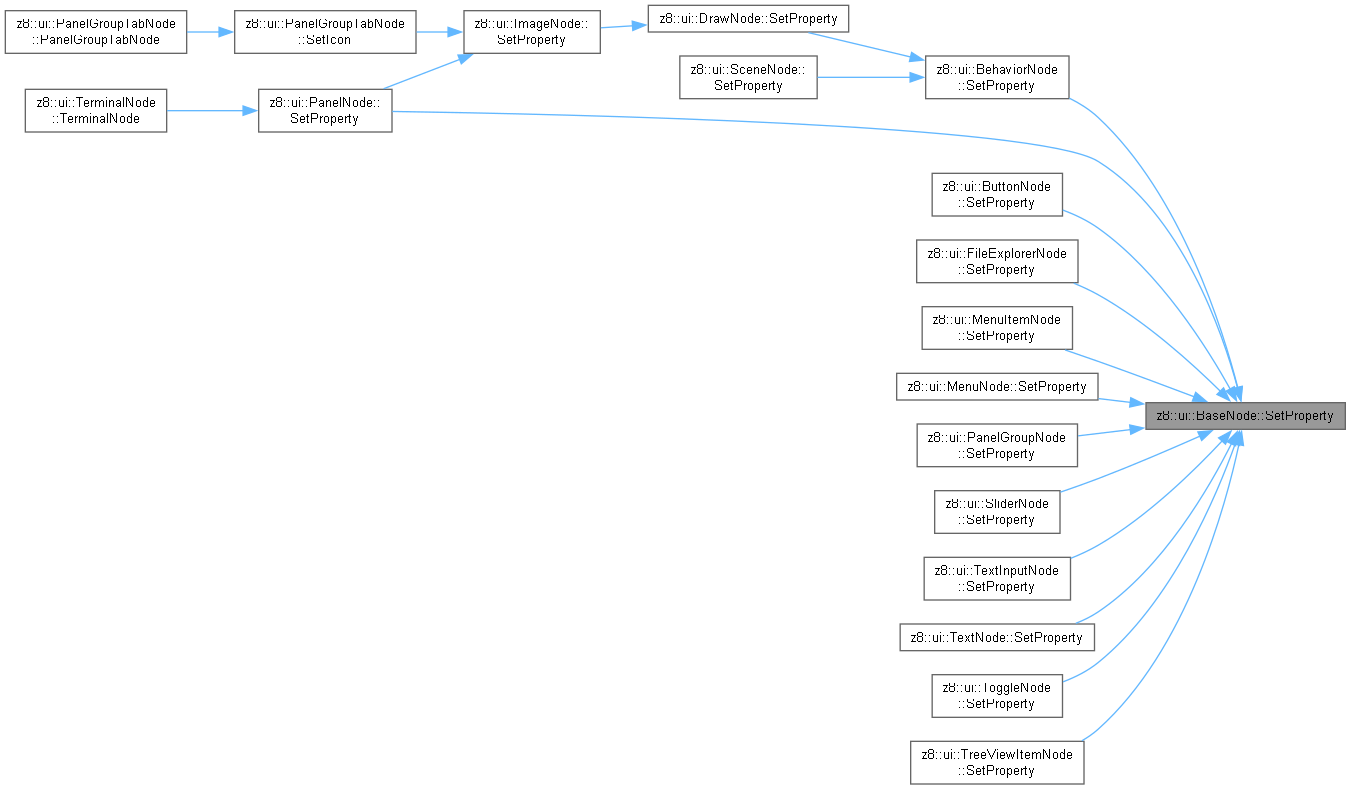

这是这个函数的调用关系图:

Synchronize()

virtual void z8::ui::BaseNode::Synchronize ( )

inlinevirtual

被 z8::ui::DrawNode, z8::ui::SliderNode , 以及 z8::ui::TextInputNode 重载.

这是这个函数的调用关系图:

TypeName()

const char * BaseNode::TypeName ( ) const

virtual

被 z8::ui::ButtonNode, z8::ui::FileExplorerNode, z8::ui::ImageNode, z8::ui::MenuItemNode, z8::ui::MenuNode, z8::ui::PanelGroupCloseNode, z8::ui::PanelGroupTabNode, z8::ui::PanelGroupNode, z8::ui::PanelNode, z8::ui::RectNode, z8::ui::SceneViewportNode, z8::ui::SceneNode, z8::ui::ScrollBarNode, z8::ui::ScrollNode, z8::ui::SliderNode, z8::ui::TerminalNode, z8::ui::TextInputNode, z8::ui::TextNode, z8::ui::ToggleNode, z8::ui::ToolBarNode, z8::ui::TreeViewItemNode , 以及 z8::ui::TreeViewNode 重载.

这是这个函数的调用关系图:

类成员变量说明

ChildOffsetX

float z8::ui::BaseNode::ChildOffsetX = 0.0f

ChildOffsetY

float z8::ui::BaseNode::ChildOffsetY = 0.0f

Children

std::vector<std::unique_ptr<BaseNode> > z8::ui::BaseNode::Children

ClipChildren

bool z8::ui::BaseNode::ClipChildren = false

Computed

LayoutBox z8::ui::BaseNode::Computed

EffectiveVisible

bool z8::ui::BaseNode::EffectiveVisible = true

父级可见性传播后的帧内结果；不覆盖控件自身的 Visible 配置。

Height

float z8::ui::BaseNode::Height = 0.0f

Key

std::string z8::ui::BaseNode::Key

LayoutManaged

bool z8::ui::BaseNode::LayoutManaged = false

几何是否由 DockTree 等上层结构统一管理。为 true 时通用 ResizeBehavior 不得直接修改 Style，避免出现两个布局真值。

Left

float z8::ui::BaseNode::Left = 0.0f

Parent

BaseNode* z8::ui::BaseNode::Parent = nullptr

Style

LayoutStyle z8::ui::BaseNode::Style

Top

float z8::ui::BaseNode::Top = 0.0f

Visible

bool z8::ui::BaseNode::Visible = true

VisibleClip

ClipRect z8::ui::BaseNode::VisibleClip = {-100000.0f, -100000.0f, 100000.0f, 100000.0f}

Width

float z8::ui::BaseNode::Width = 0.0f

---

该类的文档由以下文件生成:

• include/UI/Layout/BaseNode.h
• src/UI/Layout/BaseNode.cpp
