#include <SceneNode.h>

类 z8::ui::SceneNode 继承关系图:

[图例]

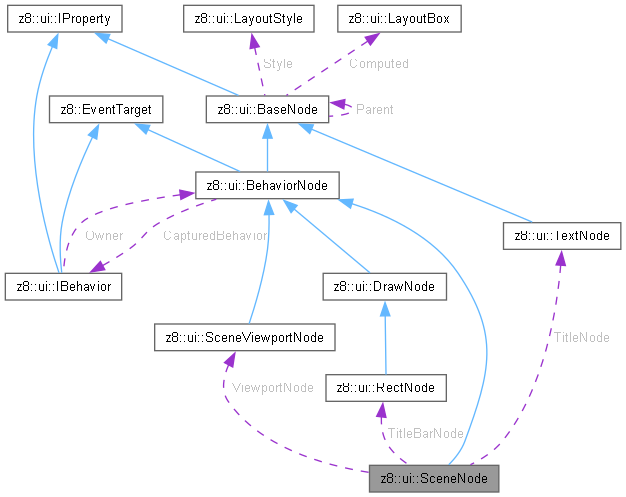

z8::ui::SceneNode 的协作图:

[图例]

Public 成员函数
	SceneNode ()

const char *	TypeName () const override

bool	SetProperty (const std::string &name, const std::string &value) override

const BaseNode &	Viewport () const

bool	HasInteractiveGeometry () const

Public 成员函数继承自 z8::ui::BehaviorNode
	~BehaviorNode () override

EventReply	DispatchMouseDown (const MouseMovArgs &args)

bool	DispatchMouseMove (const MouseMovArgs &args)

bool	DispatchMouseDrag (const MouseMovArgs &args)

bool	DispatchMouseUp (const MouseMovArgs &args)

bool	DispatchMouseWheel (MouseWheelArgs args)

MouseCursor	QueryMouseCursor (const MouseMovArgs &args) const

void	DispatchAfterLayout () override

void	DispatchBeforeLayout (float width, float height) const

void	DispatchDragStarted (const MouseMovArgs &args) const

void	DispatchDragCompleted (const MouseMovArgs &args) const

void	CancelPointerCapture ()

IBehavior *	AddBehavior (std::unique_ptr< IBehavior > behavior)

bool	RemoveBehavior (IBehavior *behavior)

void	SetHovered (bool hovered)

void	SetPressed (bool pressed)

void	SetFocused (bool focused)

template<typename T , typename... Args>
T *	AddBehavior (Args &&...args)

template<typename T >
T *	GetBehavior ()

template<typename T >
const T *	GetBehavior () const

Public 成员函数继承自 z8::ui::BaseNode
	BaseNode ()

	~BaseNode () override

	BaseNode (const BaseNode &)=delete

BaseNode &	operator= (const BaseNode &)=delete

virtual bool	RoutesToScene () const

virtual BaseNode *	ContentHost ()

bool	Contains (float x, float y) const

bool	Contains (MouseMovArgs args) const

virtual BaseNode *	AddChild (std::unique_ptr< BaseNode > child)

void	RemoveChildrenFrom (size_t first)

virtual void	OnAfterLayout ()

virtual void	Synchronize ()

Public 成员函数继承自 z8::ui::IProperty
virtual	~IProperty ()=default

Public 成员函数继承自 z8::EventTarget
virtual	~EventTarget ()=default

virtual EventReply	OnMouseDown (MouseMovArgs)

virtual EventReply	OnMouseMove (MouseMovArgs)

virtual EventReply	OnMouseDrag (MouseMovArgs)

virtual EventReply	OnMouseUp (MouseMovArgs)

virtual EventReply	OnMouseWheel (MouseWheelArgs)

virtual EventReply	OnKeyDown (KeyArgs)

virtual EventReply	OnKeyUp (KeyArgs)

virtual EventReply	OnTextInput (wchar_t)

virtual MouseCursor	GetMouseCursor (MouseMovArgs) const

virtual void	OnPointerCaptureLost ()

Public 属性
RectNode *	TitleBarNode = nullptr

TextNode *	TitleNode = nullptr

SceneViewportNode *	ViewportNode = nullptr

Public 属性继承自 z8::ui::BehaviorNode
bool	HitTestVisible = false

bool	Hovered = false

bool	Pressed = false

bool	Focusable = false

bool	Focused = false

std::vector< std::unique_ptr< IBehavior > >	Behaviors

IBehavior *	CapturedBehavior = nullptr

Public 属性继承自 z8::ui::BaseNode
std::string	Key

LayoutStyle	Style

LayoutBox	Computed

BaseNode *	Parent = nullptr

std::vector< std::unique_ptr< BaseNode > >	Children

float	Left = 0.0f

float	Top = 0.0f

float	Width = 0.0f

float	Height = 0.0f

float	ChildOffsetX = 0.0f

float	ChildOffsetY = 0.0f

bool	ClipChildren = false

bool	Visible = true

bool	EffectiveVisible = true

bool	LayoutManaged = false

ClipRect	VisibleClip = {-100000.0f, -100000.0f, 100000.0f, 100000.0f}

Private 属性
float	TitleHeight = 0.0f

额外继承的成员函数
Protected 成员函数继承自 z8::ui::BehaviorNode
virtual void	OnVisualStateChanged ()

void	ReleaseBehaviors ()

详细描述

编辑器中的 3D 场景视口占位节点。

SceneNode 自身不创建 UIObject；标题栏由普通 UI 子节点绘制，后端把场景先画入离屏纹理，再依据 ViewportNode 的布局框合成到交换链。这样标题拖拽不会穿透相机。

构造及析构函数说明

◆ SceneNode()

SceneNode::SceneNode ( )

函数调用图:

成员函数说明

◆ HasInteractiveGeometry()

bool SceneNode::HasInteractiveGeometry ( ) const

即时声明不得覆盖用户拖动或拉伸后提交的几何。

◆ SetProperty()

bool SceneNode::SetProperty	(	const std::string &	name,
		const std::string &	value )

overridevirtual

重载 z8::ui::BehaviorNode .

函数调用图:

◆ TypeName()

const char * z8::ui::SceneNode::TypeName ( ) const

inlineoverridevirtual

重载 z8::ui::BaseNode .

◆ Viewport()

const BaseNode & z8::ui::SceneNode::Viewport ( ) const

inline

后端只在内容区合成场景，标题栏始终由 UI 通道覆盖绘制。

类成员变量说明

◆ TitleBarNode

RectNode* z8::ui::SceneNode::TitleBarNode = nullptr

◆ TitleHeight

float z8::ui::SceneNode::TitleHeight = 0.0f

private

构造时取自 Theme；保留实例值以支持声明层覆盖标题高度。

◆ TitleNode

TextNode* z8::ui::SceneNode::TitleNode = nullptr

◆ ViewportNode

SceneViewportNode* z8::ui::SceneNode::ViewportNode = nullptr

该类的文档由以下文件生成:

include/UI/Layout/SceneNode.h
src/UI/Layout/SceneNode.cpp
