z8::ui::PanelNode类 参考

#include <PanelNode.h>

类 z8::ui::PanelNode 继承关系图:

z8::ui::PanelNode 的协作图:

Public 成员函数
	PanelNode ()
BaseNode *	ContentHost () override
bool	HasInteractiveGeometry () const
bool	SetProperty (const std::string &name, const std::string &value) override
bool	SetTitleIcon (UIIcon icon)
const char *	TypeName () const override
Public 成员函数 继承自 z8::ui::RectNode
	RectNode ()
const char *	TypeName () const override
Public 成员函数 继承自 z8::ui::DrawNode
	DrawNode (std::unique_ptr< UIObject > O)
	~DrawNode () override
bool	SetColor (const DirectX::XMFLOAT4 &color) const
bool	SetBorder (const DirectX::XMFLOAT4 &color, float width) const
bool	SetCornerRadius (float radius) const
void	Synchronize () override
Public 成员函数 继承自 z8::ui::BehaviorNode
	~BehaviorNode () override
EventReply	DispatchMouseDown (const MouseMovArgs &args)
bool	DispatchMouseMove (const MouseMovArgs &args)
bool	DispatchMouseDrag (const MouseMovArgs &args)
bool	DispatchMouseUp (const MouseMovArgs &args)
bool	DispatchMouseWheel (MouseWheelArgs args)
MouseCursor	QueryMouseCursor (const MouseMovArgs &args) const
void	DispatchAfterLayout () override
void	DispatchBeforeLayout (float width, float height) const
void	DispatchDragStarted (const MouseMovArgs &args) const
void	DispatchDragCompleted (const MouseMovArgs &args) const
void	CancelPointerCapture ()
IBehavior *	AddBehavior (std::unique_ptr< IBehavior > behavior)
bool	RemoveBehavior (IBehavior *behavior)
void	SetHovered (bool hovered)
void	SetPressed (bool pressed)
void	SetFocused (bool focused)
template<typename T , typename... Args>
T *	AddBehavior (Args &&...args)
template<typename T >
T *	GetBehavior ()
template<typename T >
const T *	GetBehavior () const
Public 成员函数 继承自 z8::ui::BaseNode
	BaseNode ()
	~BaseNode () override
	BaseNode (const BaseNode &)=delete
BaseNode &	operator= (const BaseNode &)=delete
virtual bool	RoutesToScene () const
bool	Contains (float x, float y) const
bool	Contains (MouseMovArgs args) const
virtual BaseNode *	AddChild (std::unique_ptr< BaseNode > child)
void	RemoveChildrenFrom (size_t first)
virtual void	OnAfterLayout ()
Public 成员函数 继承自 z8::ui::IProperty
virtual	~IProperty ()=default
Public 成员函数 继承自 z8::EventTarget
virtual	~EventTarget ()=default
virtual EventReply	OnMouseDown (MouseMovArgs)
virtual EventReply	OnMouseMove (MouseMovArgs)
virtual EventReply	OnMouseDrag (MouseMovArgs)
virtual EventReply	OnMouseUp (MouseMovArgs)
virtual EventReply	OnMouseWheel (MouseWheelArgs)
virtual EventReply	OnKeyDown (KeyArgs)
virtual EventReply	OnKeyUp (KeyArgs)
virtual EventReply	OnTextInput (wchar_t)
virtual MouseCursor	GetMouseCursor (MouseMovArgs) const
virtual void	OnPointerCaptureLost ()

Public 属性
PanelGroupNode *	Group = nullptr
std::string	IconSource
ImageNode *	TitleIconNode
RectNode *	TitleBarNode
TextNode *	TitleNode
ScrollNode *	ScrollAreaNode
Public 属性 继承自 z8::ui::DrawNode
std::unique_ptr< UIObject >	UO
bool	OccludesEarlierText = false
Public 属性 继承自 z8::ui::BehaviorNode
bool	HitTestVisible = false
bool	Hovered = false
bool	Pressed = false
bool	Focusable = false
bool	Focused = false
std::vector< std::unique_ptr< IBehavior > >	Behaviors
IBehavior *	CapturedBehavior = nullptr
Public 属性 继承自 z8::ui::BaseNode
std::string	Key
LayoutStyle	Style
LayoutBox	Computed
BaseNode *	Parent = nullptr
std::vector< std::unique_ptr< BaseNode > >	Children
float	Left = 0.0f
float	Top = 0.0f
float	Width = 0.0f
float	Height = 0.0f
float	ChildOffsetX = 0.0f
float	ChildOffsetY = 0.0f
bool	ClipChildren = false
bool	Visible = true
bool	EffectiveVisible = true
bool	LayoutManaged = false
ClipRect	VisibleClip = {-100000.0f, -100000.0f, 100000.0f, 100000.0f}

Private 属性
float	TitleHeight = 0.0f

额外继承的成员函数
Protected 成员函数 继承自 z8::ui::BehaviorNode
virtual void	OnVisualStateChanged ()
void	ReleaseBehaviors ()

构造及析构函数说明

PanelNode()

PanelNode::PanelNode

(

)

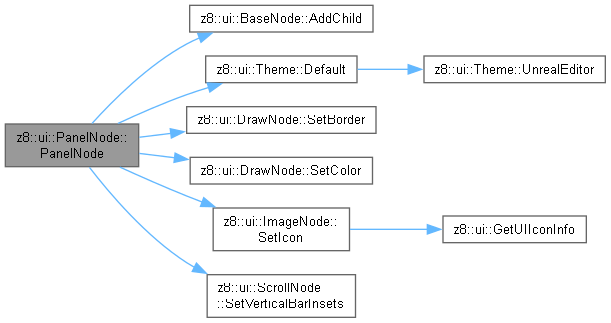

函数调用图:

成员函数说明

ContentHost()

BaseNode * PanelNode::ContentHost ( )

overridevirtual

重载 z8::ui::BaseNode .

函数调用图:

这是这个函数的调用关系图:

HasInteractiveGeometry()

bool z8::ui::PanelNode::HasInteractiveGeometry ( ) const

inline

即时声明重复提交初始样式时，用它保护用户已经调整的几何。

SetProperty()

bool PanelNode::SetProperty ( const std::string & name, const std::string & value )

overridevirtual

重载 z8::ui::DrawNode .

函数调用图:

这是这个函数的调用关系图:

SetTitleIcon()

bool PanelNode::SetTitleIcon

(

UIIcon

icon

)

内部编辑器控件可按 UIIcon 设置标题图标，声明层仍可继续使用 Source URI。

函数调用图:

这是这个函数的调用关系图:

TypeName()

const char * z8::ui::PanelNode::TypeName ( ) const

inlineoverridevirtual

重载 z8::ui::BaseNode .

被 z8::ui::TerminalNode 重载.

类成员变量说明

Group

PanelGroupNode* z8::ui::PanelNode::Group = nullptr

所属页签组；非拥有指针，未入组的独立 Panel 为空。

IconSource

std::string z8::ui::PanelNode::IconSource

标题图标的资源 URI；入组后由对应 Tab 继续展示同一图标。

ScrollAreaNode

ScrollNode* z8::ui::PanelNode::ScrollAreaNode

TitleBarNode

RectNode* z8::ui::PanelNode::TitleBarNode

TitleHeight

float z8::ui::PanelNode::TitleHeight = 0.0f

private

构造时取自 Theme；实例属性可覆盖但不会修改全局主题。

TitleIconNode

ImageNode* z8::ui::PanelNode::TitleIconNode

TitleNode

TextNode* z8::ui::PanelNode::TitleNode

---

该类的文档由以下文件生成:

• include/UI/Layout/PanelNode.h
• src/UI/Layout/PanelNode.cpp
