#include <ToolBarNode.h>

类 z8::ui::ToolBarNode 继承关系图:

[图例]

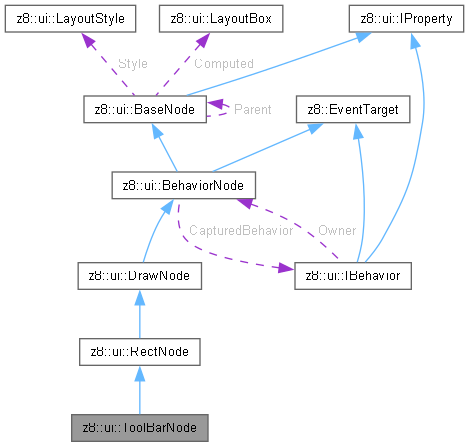

z8::ui::ToolBarNode 的协作图:

[图例]

Public 成员函数
	ToolBarNode ()

BaseNode *	AddChild (std::unique_ptr< BaseNode > child) override

const char *	TypeName () const override

Public 成员函数继承自 z8::ui::RectNode
	RectNode ()

Public 成员函数继承自 z8::ui::DrawNode
	DrawNode (std::unique_ptr< UIObject > O)

	~DrawNode () override

bool	SetProperty (const std::string &name, const std::string &value) override

bool	SetColor (const DirectX::XMFLOAT4 &color) const

bool	SetBorder (const DirectX::XMFLOAT4 &color, float width) const

bool	SetCornerRadius (float radius) const

void	Synchronize () override

Public 成员函数继承自 z8::ui::BehaviorNode
	~BehaviorNode () override

EventReply	DispatchMouseDown (const MouseMovArgs &args)

bool	DispatchMouseMove (const MouseMovArgs &args)

bool	DispatchMouseDrag (const MouseMovArgs &args)

bool	DispatchMouseUp (const MouseMovArgs &args)

bool	DispatchMouseWheel (MouseWheelArgs args)

MouseCursor	QueryMouseCursor (const MouseMovArgs &args) const

void	DispatchAfterLayout () override

void	DispatchBeforeLayout (float width, float height) const

void	DispatchDragStarted (const MouseMovArgs &args) const

void	DispatchDragCompleted (const MouseMovArgs &args) const

void	CancelPointerCapture ()

IBehavior *	AddBehavior (std::unique_ptr< IBehavior > behavior)

bool	RemoveBehavior (IBehavior *behavior)

void	SetHovered (bool hovered)

void	SetPressed (bool pressed)

void	SetFocused (bool focused)

template<typename T , typename... Args>
T *	AddBehavior (Args &&...args)

template<typename T >
T *	GetBehavior ()

template<typename T >
const T *	GetBehavior () const

Public 成员函数继承自 z8::ui::BaseNode
	BaseNode ()

	~BaseNode () override

	BaseNode (const BaseNode &)=delete

BaseNode &	operator= (const BaseNode &)=delete

virtual bool	RoutesToScene () const

virtual BaseNode *	ContentHost ()

bool	Contains (float x, float y) const

bool	Contains (MouseMovArgs args) const

void	RemoveChildrenFrom (size_t first)

virtual void	OnAfterLayout ()

Public 成员函数继承自 z8::ui::IProperty
virtual	~IProperty ()=default

Public 成员函数继承自 z8::EventTarget
virtual	~EventTarget ()=default

virtual EventReply	OnMouseDown (MouseMovArgs)

virtual EventReply	OnMouseMove (MouseMovArgs)

virtual EventReply	OnMouseDrag (MouseMovArgs)

virtual EventReply	OnMouseUp (MouseMovArgs)

virtual EventReply	OnMouseWheel (MouseWheelArgs)

virtual EventReply	OnKeyDown (KeyArgs)

virtual EventReply	OnKeyUp (KeyArgs)

virtual EventReply	OnTextInput (wchar_t)

virtual MouseCursor	GetMouseCursor (MouseMovArgs) const

virtual void	OnPointerCaptureLost ()

额外继承的成员函数
Public 属性继承自 z8::ui::DrawNode
std::unique_ptr< UIObject >	UO

bool	OccludesEarlierText = false

Public 属性继承自 z8::ui::BehaviorNode
bool	HitTestVisible = false

bool	Hovered = false

bool	Pressed = false

bool	Focusable = false

bool	Focused = false

std::vector< std::unique_ptr< IBehavior > >	Behaviors

IBehavior *	CapturedBehavior = nullptr

Public 属性继承自 z8::ui::BaseNode
std::string	Key

LayoutStyle	Style

LayoutBox	Computed

BaseNode *	Parent = nullptr

std::vector< std::unique_ptr< BaseNode > >	Children

float	Left = 0.0f

float	Top = 0.0f

float	Width = 0.0f

float	Height = 0.0f

float	ChildOffsetX = 0.0f

float	ChildOffsetY = 0.0f

bool	ClipChildren = false

bool	Visible = true

bool	EffectiveVisible = true

bool	LayoutManaged = false

ClipRect	VisibleClip = {-100000.0f, -100000.0f, 100000.0f, 100000.0f}

Protected 成员函数继承自 z8::ui::BehaviorNode
virtual void	OnVisualStateChanged ()

void	ReleaseBehaviors ()

详细描述

固定在工作区顶部的紧凑 Menu 集合；不创建标题栏、页签或滚动内容区。

构造及析构函数说明

◆ ToolBarNode()

ToolBarNode::ToolBarNode ( )

函数调用图:

成员函数说明

◆ AddChild()

BaseNode * ToolBarNode::AddChild ( std::unique_ptr< BaseNode > child )

overridevirtual

转移子节点所有权并维护 Parent。复合容器可覆写该入口，将声明子节点转发到内部内容宿主。

重载 z8::ui::BaseNode .

函数调用图:

◆ TypeName()

const char * z8::ui::ToolBarNode::TypeName ( ) const

inlineoverridevirtual

重载 z8::ui::RectNode .

该类的文档由以下文件生成:

include/UI/Layout/ToolBarNode.h
src/UI/Layout/ToolBarNode.cpp
