#include <TreeViewNode.h>

类 z8::ui::TreeViewItemNode 继承关系图:

[图例]

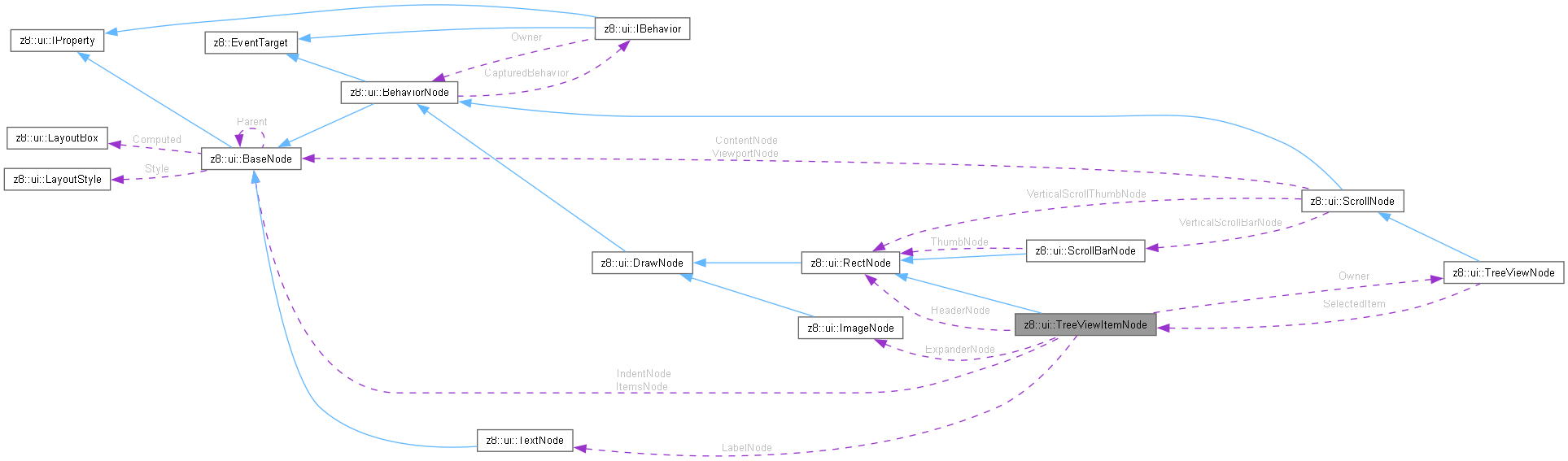

z8::ui::TreeViewItemNode 的协作图:

[图例]

Public 成员函数
	TreeViewItemNode ()

void	Attach (TreeViewNode *owner, size_t depth)

BaseNode *	ContentHost () override

const char *	TypeName () const override

EventReply	OnKeyDown (KeyArgs args) override

EventReply	OnMouseDown (MouseMovArgs args) override

void	SetEnabled (bool enabled)

bool	SetExpanded (bool expanded)

bool	SetProperty (const std::string &name, const std::string &value) override

void	SetSelected (bool selected)

void	SetText (const std::string &text)

Public 成员函数继承自 z8::ui::RectNode
	RectNode ()

Public 成员函数继承自 z8::ui::DrawNode
	DrawNode (std::unique_ptr< UIObject > O)

	~DrawNode () override

bool	SetColor (const DirectX::XMFLOAT4 &color) const

bool	SetBorder (const DirectX::XMFLOAT4 &color, float width) const

bool	SetCornerRadius (float radius) const

void	Synchronize () override

Public 成员函数继承自 z8::ui::BehaviorNode
	~BehaviorNode () override

EventReply	DispatchMouseDown (const MouseMovArgs &args)

bool	DispatchMouseMove (const MouseMovArgs &args)

bool	DispatchMouseDrag (const MouseMovArgs &args)

bool	DispatchMouseUp (const MouseMovArgs &args)

bool	DispatchMouseWheel (MouseWheelArgs args)

MouseCursor	QueryMouseCursor (const MouseMovArgs &args) const

void	DispatchAfterLayout () override

void	DispatchBeforeLayout (float width, float height) const

void	DispatchDragStarted (const MouseMovArgs &args) const

void	DispatchDragCompleted (const MouseMovArgs &args) const

void	CancelPointerCapture ()

IBehavior *	AddBehavior (std::unique_ptr< IBehavior > behavior)

bool	RemoveBehavior (IBehavior *behavior)

void	SetHovered (bool hovered)

void	SetPressed (bool pressed)

void	SetFocused (bool focused)

template<typename T , typename... Args>
T *	AddBehavior (Args &&...args)

template<typename T >
T *	GetBehavior ()

template<typename T >
const T *	GetBehavior () const

Public 成员函数继承自 z8::ui::BaseNode
	BaseNode ()

	~BaseNode () override

	BaseNode (const BaseNode &)=delete

BaseNode &	operator= (const BaseNode &)=delete

virtual bool	RoutesToScene () const

bool	Contains (float x, float y) const

bool	Contains (MouseMovArgs args) const

virtual BaseNode *	AddChild (std::unique_ptr< BaseNode > child)

void	RemoveChildrenFrom (size_t first)

virtual void	OnAfterLayout ()

Public 成员函数继承自 z8::ui::IProperty
virtual	~IProperty ()=default

Public 成员函数继承自 z8::EventTarget
virtual	~EventTarget ()=default

virtual EventReply	OnMouseMove (MouseMovArgs)

virtual EventReply	OnMouseDrag (MouseMovArgs)

virtual EventReply	OnMouseUp (MouseMovArgs)

virtual EventReply	OnMouseWheel (MouseWheelArgs)

virtual EventReply	OnKeyUp (KeyArgs)

virtual EventReply	OnTextInput (wchar_t)

virtual MouseCursor	GetMouseCursor (MouseMovArgs) const

virtual void	OnPointerCaptureLost ()

Public 属性
RectNode *	HeaderNode = nullptr

BaseNode *	IndentNode = nullptr

ImageNode *	ExpanderNode = nullptr

TextNode *	LabelNode = nullptr

BaseNode *	ItemsNode = nullptr

bool	Expanded = true

bool	Selected = false

bool	Enabled = true

Public 属性继承自 z8::ui::DrawNode
std::unique_ptr< UIObject >	UO

bool	OccludesEarlierText = false

Public 属性继承自 z8::ui::BehaviorNode
bool	HitTestVisible = false

bool	Hovered = false

bool	Pressed = false

bool	Focusable = false

bool	Focused = false

std::vector< std::unique_ptr< IBehavior > >	Behaviors

IBehavior *	CapturedBehavior = nullptr

Public 属性继承自 z8::ui::BaseNode
std::string	Key

LayoutStyle	Style

LayoutBox	Computed

BaseNode *	Parent = nullptr

std::vector< std::unique_ptr< BaseNode > >	Children

float	Left = 0.0f

float	Top = 0.0f

float	Width = 0.0f

float	Height = 0.0f

float	ChildOffsetX = 0.0f

float	ChildOffsetY = 0.0f

bool	ClipChildren = false

bool	Visible = true

bool	EffectiveVisible = true

bool	LayoutManaged = false

ClipRect	VisibleClip = {-100000.0f, -100000.0f, 100000.0f, 100000.0f}
