z8::ui::DockBehavior类 参考

#include <DockBehavior.h>

类 z8::ui::DockBehavior 继承关系图:

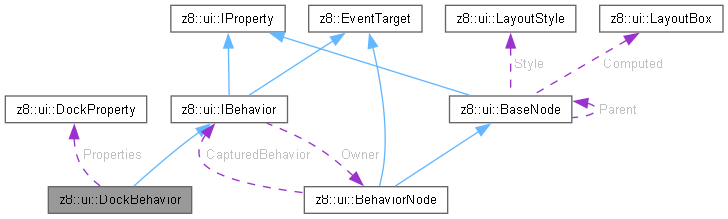

z8::ui::DockBehavior 的协作图:

Public 成员函数
bool	SetProperty (const std::string &name, const std::string &value) override
void	OnDragStarted (MouseMovArgs args) override
void	OnDragCompleted (MouseMovArgs args) override
Public 成员函数 继承自 z8::ui::IBehavior
	IBehavior (int priority=0)
	~IBehavior () override=default
	IBehavior (const IBehavior &)=delete
IBehavior &	operator= (const IBehavior &)=delete
virtual void	OnBeforeLayout (float, float)
virtual void	OnAfterLayout ()
virtual void	OnAttached ()
virtual void	OnDetached ()
Public 成员函数 继承自 z8::ui::IProperty
virtual	~IProperty ()=default
Public 成员函数 继承自 z8::EventTarget
virtual	~EventTarget ()=default
virtual EventReply	OnMouseDown (MouseMovArgs)
virtual EventReply	OnMouseMove (MouseMovArgs)
virtual EventReply	OnMouseDrag (MouseMovArgs)
virtual EventReply	OnMouseUp (MouseMovArgs)
virtual EventReply	OnMouseWheel (MouseWheelArgs)
virtual EventReply	OnKeyDown (KeyArgs)
virtual EventReply	OnKeyUp (KeyArgs)
virtual EventReply	OnTextInput (wchar_t)
virtual MouseCursor	GetMouseCursor (MouseMovArgs) const
virtual void	OnPointerCaptureLost ()

Public 属性
DockProperty	Properties
Public 属性 继承自 z8::ui::IBehavior
BehaviorNode *	Owner = nullptr
int	Priority = 0

详细描述

标记一个 BehaviorNode 可被 DockWorkspace 管理，并解析初始声明配置。 组件本身不修改树或几何，避免输入策略成为布局真值。

成员函数说明

OnDragCompleted()

void DockBehavior::OnDragCompleted ( MouseMovArgs args )

overridevirtual

重载 z8::ui::IBehavior .

OnDragStarted()

void DockBehavior::OnDragStarted ( MouseMovArgs args )

overridevirtual

拖动只表达重排意图，结构事务由 DockWorkspace 在释放时提交。

重载 z8::ui::IBehavior .

SetProperty()

bool DockBehavior::SetProperty ( const std::string & name, const std::string & value )

overridevirtual

解析声明式停靠配置；无法识别的名称继续交给其他行为。

重载 z8::ui::IProperty .

函数调用图:

类成员变量说明

Properties

DockProperty z8::ui::DockBehavior::Properties

---

该类的文档由以下文件生成:

• include/UI/Behavior/DockBehavior.h
• src/UI/Behavior/DockBehavior.cpp
